🚀 mars-probe-simulator

A production-grade backend API built with FastAPI, designed to demonstrate how I structure scalable, maintainable, and testable systems in a real-world engineering environment.

This repository is intentionally organized to show:

clean architectural separation,
async-first business logic,
infrastructure-ready persistence,
rigorous test coverage,
and developer-friendly local workflows.

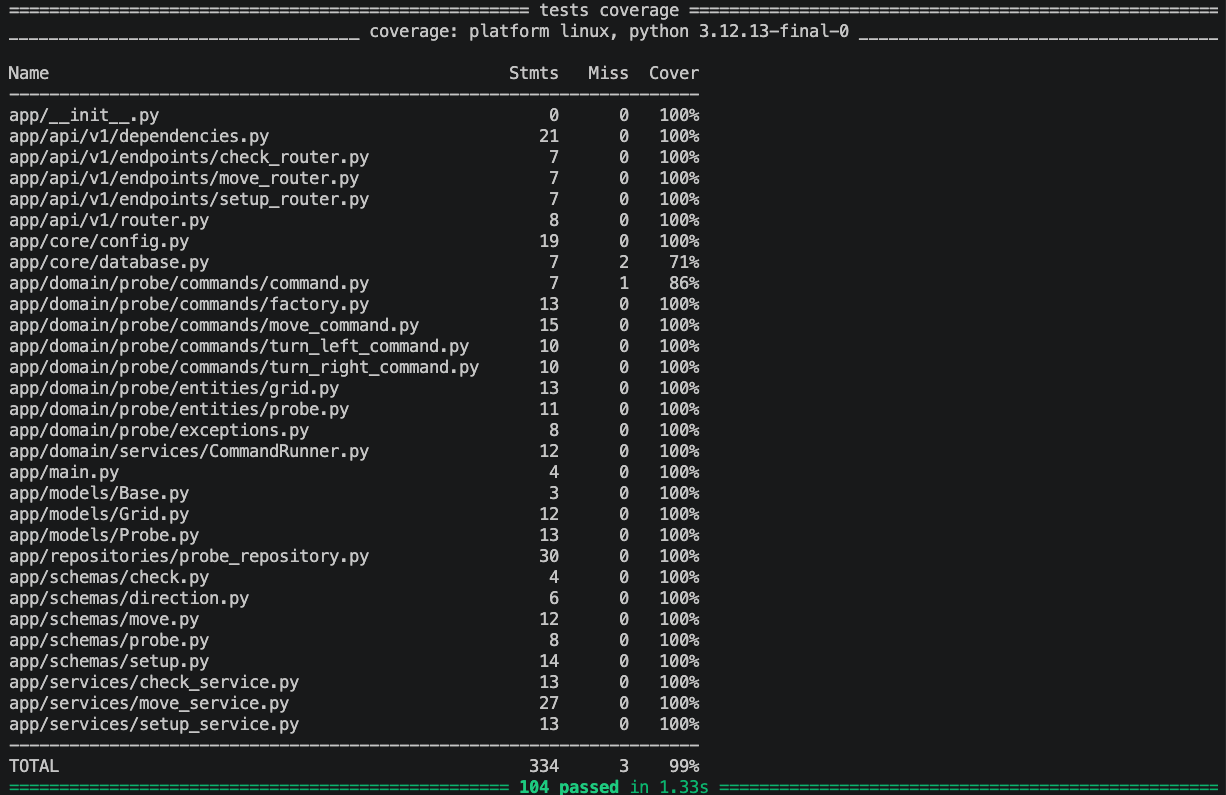

✅ Test coverage results are deployed automatically on merges to main. View the deployed coverage report here: https://barbaraport.github.io/mars-probe-simulator/

🌟 Engineering Highlights

⚡ Async-first architecture using FastAPI and SQLAlchemy 2.0 async
🧱 Layered domain model with clear API / service / domain / repository boundaries
🧪 Full testing pyramid: unit, integration, and E2E coverage
🐘 PostgreSQL-ready data layer with Alembic migrations and database contract safety
🛠 Quality tooling: ruff, automated hooks, and environment-specific workflows
🧩 Extendable design for future features and production adoption

⚙️ Tech Stack

FastAPI – high-performance async HTTP layer
uv – dependency and environment management
Pydantic v2 – validation and schema contracts
SQLAlchemy 2.0 (async) – async ORM and persistence
PostgreSQL – production-grade relational storage
Alembic – migrations and schema versioning
Docker / Docker Compose – consistent local development and CI-style test environments
pytest – deterministic, fast automated testing
ruff – linting, formatting, and static checks

🐳 Docker & Environment Strategy

This project uses environment-specific Docker configurations to reflect real-world deployment workflows.

Each environment has different operational goals and therefore different build/runtime requirements:

Environment	Purpose
Development	Developer productivity, hot reload, debugging, and local tooling
Test	Deterministic execution of automated test suites
Production	Lean runtime image with only the dependencies required to run the application

This separation helps prevent development-only tooling from leaking into production images while keeping local workflows fast and reproducible.

docker/
├── prometheus.yml            # prometheus configuration
├── docker-compose.yml        # shared/base services
├── dev/
│   ├── Dockerfile
│   └── docker-compose.yml
├── test/
│   ├── Dockerfile
│   └── docker-compose.yml
└── prod/
    ├── Dockerfile
    └── docker-compose.yml

Key benefits:

isolated environment concerns
predictable builds
production-safe container images
reproducible development and testing workflows
reduced operational risk

📊 Observability

This application includes production-oriented observability capabilities based on modern telemetry standards.

Signals

The service emits the three fundamental observability signals:

Logs (structured JSON logging)
Metrics (Prometheus)
Traces (OpenTelemetry)

Structured Logging

All application logs are emitted as structured JSON and include request correlation metadata.

Grid setup example:

mars-probe-simulator-app-1  | {"status": "started", "grid_id": "75cf11e0-f5d5-4dd7-b895-22e7e3d66fa8", "grid_x": 10, "grid_y": 10, "probe_id": "fc5e8297-4b08-4c44-b830-f1924589fa7c", "probe_x": 0, "probe_y": 0, "probe_direction": "NORTH", "event": "PROBE_CREATED", "correlation_id": "31bef03e-4f3d-4c59-a7bb-612049c6018a", "timestamp": "2026-06-08T01:08:47.138437Z", "level": "info"}
mars-probe-simulator-app-1  | {"operation": "increment", "new_value": 1.0, "event": "PROBE_CREATED_TOTAL", "correlation_id": "31bef03e-4f3d-4c59-a7bb-612049c6018a", "timestamp": "2026-06-08T01:08:47.138494Z", "level": "info"}

mars-probe-simulator-app-1  | {"status": "finished", "grid_id": "75cf11e0-f5d5-4dd7-b895-22e7e3d66fa8", "grid_x": 10, "grid_y": 10, "probe_id": "fc5e8297-4b08-4c44-b830-f1924589fa7c", "probe_x": 0, "probe_y": 0, "probe_direction": "NORTH", "event": "PROBE_CREATED", "correlation_id": "31bef03e-4f3d-4c59-a7bb-612049c6018a", "timestamp": "2026-06-08T01:08:47.138512Z", "level": "info"}

mars-probe-simulator-app-1  | {"method": "POST", "path": "/api/v1/setup", "status_code": 200, "duration_ms": 65.18, "event": "COMPLETED_REQUEST", "correlation_id": "31bef03e-4f3d-4c59-a7bb-612049c6018a", "timestamp": "2026-06-08T01:08:47.138988Z", "level": "info"}

Command example:

mars-probe-simulator-app-1  | {"status": "started", "probe_id": "fc5e8297-4b08-4c44-b830-f1924589fa7c", "command": "MMMRMMM", "from_x": 0, "from_y": 0, "from_direction": "NORTH", "to_x": 3, "to_y": 3, "to_direction": "EAST", "event": "PROBE_COMMAND_SENT", "correlation_id": "32dcb6f3-f5ee-4cc0-a841-cae6f6ae026e", "timestamp": "2026-06-08T01:09:42.239671Z", "level": "info"}

mars-probe-simulator-app-1  | {"operation": "increment", "new_value": 1.0, "event": "PROBE_COMMANDS_TOTAL", "correlation_id": "32dcb6f3-f5ee-4cc0-a841-cae6f6ae026e", "timestamp": "2026-06-08T01:09:42.239719Z", "level": "info"}

mars-probe-simulator-app-1  | {"status": "finished", "probe_id": "fc5e8297-4b08-4c44-b830-f1924589fa7c", "command": "MMMRMMM", "from_x": 0, "from_y": 0, "from_direction": "NORTH", "to_x": 3, "to_y": 3, "to_direction": "EAST", "event": "PROBE_COMMAND_SENT", "correlation_id": "32dcb6f3-f5ee-4cc0-a841-cae6f6ae026e", "timestamp": "2026-06-08T01:09:42.239736Z", "level": "info"}

mars-probe-simulator-app-1  | {"method": "PATCH", "path": "/api/v1/move", "status_code": 200, "duration_ms": 9.49, "event": "COMPLETED_REQUEST", "correlation_id": "32dcb6f3-f5ee-4cc0-a841-cae6f6ae026e", "timestamp": "2026-06-08T01:09:42.239865Z", "level": "info"}

Health Endpoints

Operational endpoints are available for runtime monitoring.

Endpoint	Purpose
`/api/v1/ready`	Readiness check, including database connectivity
`/metrics`	Prometheus metrics endpoint

Metrics

Metrics are exposed using Prometheus-compatible format.

Collected metrics include:

request count
request duration
in-flight requests
error rates
endpoint-specific statistics
domain usage statistics (grid/probe)

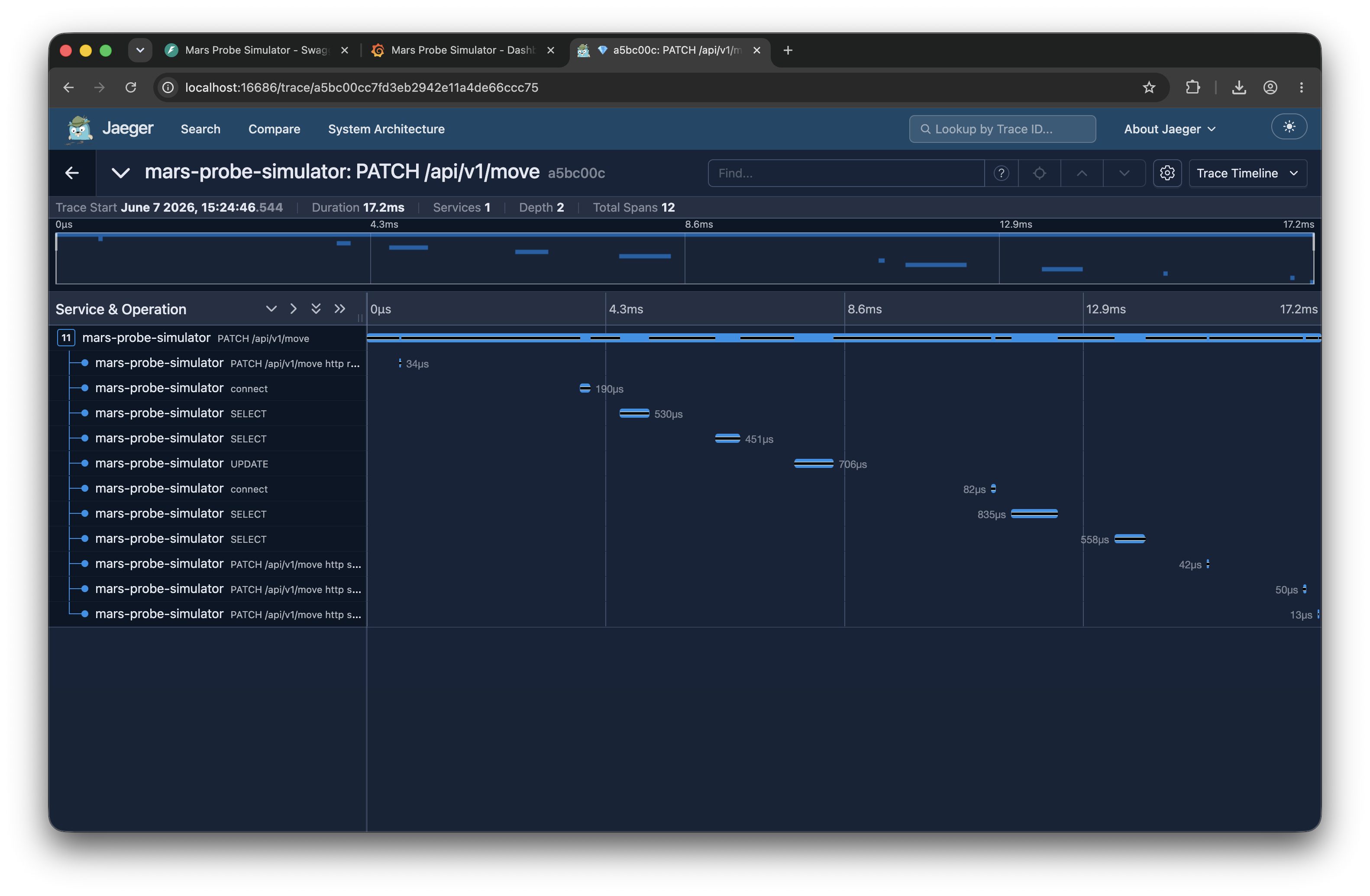

Distributed Tracing

The application is instrumented with OpenTelemetry and automatically generates traces for:

FastAPI requests
service execution
repository operations
SQLAlchemy database interactions

Local Observability Stack

Development environments include a complete local observability stack.

Service	URL
FastAPI Docs	http://localhost:8000/docs
Prometheus	http://localhost:9090
Grafana	http://localhost:3000
Jaeger	http://localhost:16686
Adminer	http://localhost:8080

Tooling

[!NOTE]

The application is instrumented through OpenTelemetry and can export telemetry to any OTLP-compatible observability backend.

OpenTelemetry: Vendor-neutral telemetry standard used to generate traces and metrics.
Prometheus: Metrics collection and time-series database.
Grafana: Dashboarding and metrics visualization.
Jaeger: Distributed tracing backend used to inspect request execution flows.

🧰 Code Quality and Developer Experience

This repo includes quality controls that reflect engineering discipline:

Husky for Git hooks
Commitlint for conventional commit enforcement
make check for linting and static checks
environment-specific runtime configuration
modular and testable dependency wiring

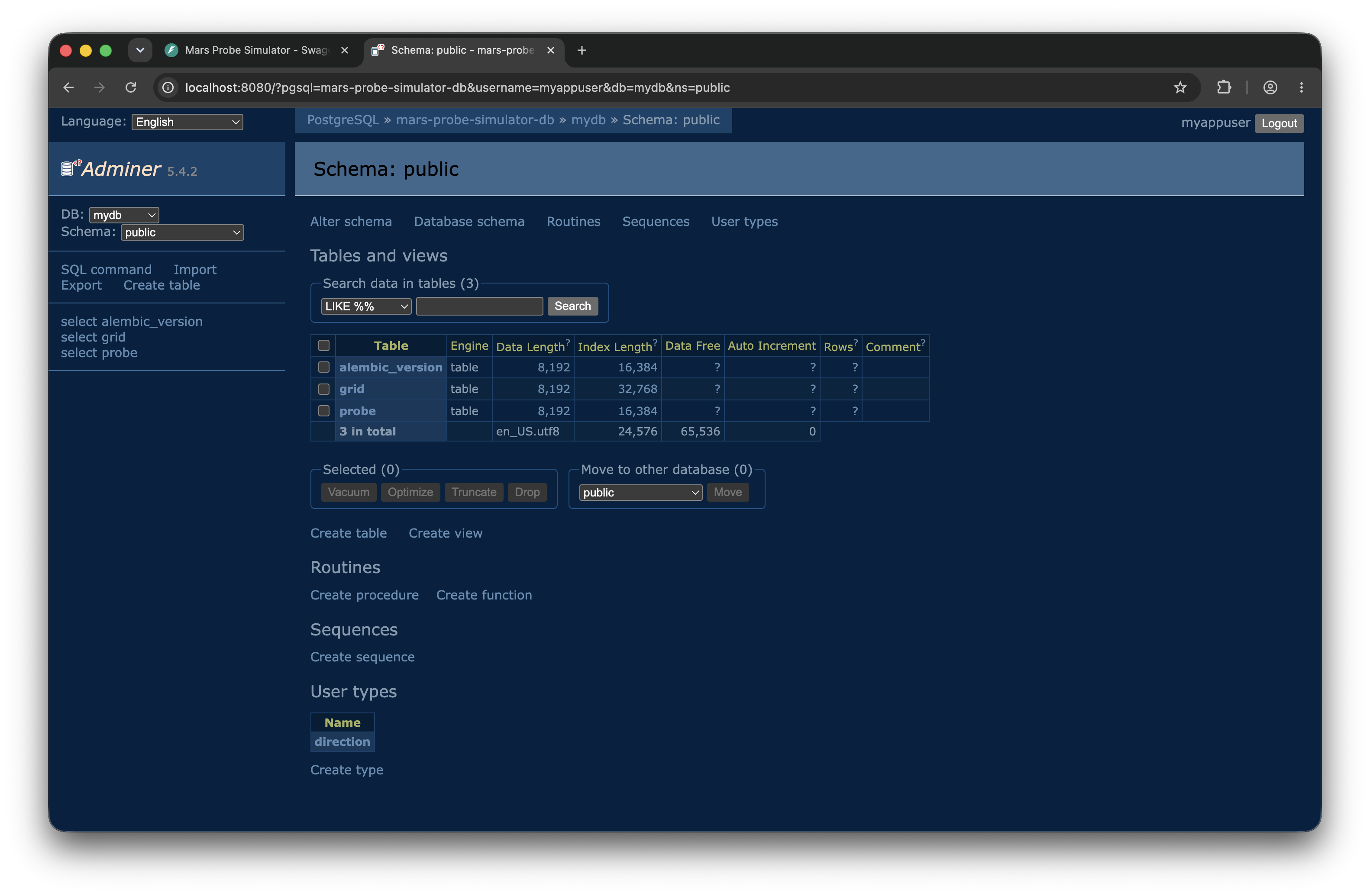

📦 Database Access (Adminer)

Adminer is included as a lightweight tool for inspecting the database during local development.

It enables:

browsing tables and records
running raw SQL queries
inspecting schema design
validating persisted data quickly

This accelerates development without requiring an external database client.

⛳ Local commands

make setup — install dependencies, enable Git hooks, and migrate the database
make dev — start the local development Docker stack
make test — run the test suite inside the test Compose environment
make check — run lint, formatting, and static analysis
make db-upgrade — apply database migrations
make migration name="<message>" — create a new Alembic migration

🏗 Architecture Overview

This service uses a layered backend architecture to minimize coupling and reduce risk when shipping changes.

HTTP Layer
(FastAPI routes)
↓
Service Layer
(business orchestration)
↓
Domain Layer
(probe/grid rules)
↓
Repository Layer
(data access)
↓
Database
(PostgreSQL)

Each layer is intentionally responsible for only one concern:

Routes → translate HTTP requests into application input/output
Services → orchestrate business rules, validation, and workflows
Domain → encapsulate core probe/grid logic and invariants
Repositories → isolate persistence specifics from domain behavior
Schemas/Models → enforce contracts and data integrity

📁 Project Structure

app/
├── api/            # HTTP entrypoints, routers, dependency wiring
├── core/           # configuration, database setup, environment bootstrapping
├── domain/         # business rules, entities, command handling
├── models/         # SQLAlchemy ORM models and schema mapping
├── schemas/        # Pydantic request/response models and validation
├── services/       # application business logic and use-case orchestration
├── repositories/   # database persistence abstractions
└── main.py         # application startup and router mounting

This layout is designed to support team development, safe refactoring, and incremental feature growth.

🧪 Test Strategy

This repository follows a disciplined test pyramid with clearly defined test boundaries.

To run the test suite, use the provided make commands. make setup initializes the development environment and installs dependencies, while make test executes all tests across the pyramid.

make setup
make test

✔ Unit tests

Validate business logic in isolation, without network or database dependencies.

Services
Domain rules
Validation utilities
Command parsing

✔ Integration tests

Verify persistence and repository behavior against a real database.

SQLAlchemy queries
repository contracts
transactional behavior

✔ End-to-end tests

Validate real HTTP behavior through FastAPI endpoints.

route contracts
request/response validation
business workflows

tests/
├── unit/                    # isolated business logic tests
│   ├── services/            # service orchestration
│   ├── domain/              # domain rules and entities
├── integration/             # database persistence tests
│   └── repositories/        # repository contracts and queries
└── e2e/                     # HTTP endpoint tests, route contracts and workflows

This approach yields confidence for both safe refactoring and production-quality delivery.

🧪✅ Coverage results are deployed automatically on merges to main; inspect the latest report here: https://barbaraport.github.io/mars-probe-simulator/

🔐 Design Principles

Service-oriented business logic

The service layer isolates orchestration and enables reuse across APIs, CLI tools, or background workers.

Repository abstraction

Database access is decoupled from domain rules, making the core logic independent of persistence mechanism.

Dependency injection

FastAPI dependencies are used to keep wiring explicit, replaceable, and testable.

Async-first implementation

The app is built around async endpoints, async sessions, and non-blocking IO for modern backend performance.

Contract-first validation

Pydantic schemas and explicit command validation ensure invalid input fails fast and clearly.

✅ Prerequisites

Python 3.12 or higher
uv for dependency and environment management
Docker and Docker Compose for local development and testing
Node.js / npm for package management and git hooks
.env and .env.test for environment configuration

🧾 Environment files

The app loads configuration from .env in development. .env.test is used for the test environment, while .env.prod is used for the production app.

Example .env:

APP_PORT=8000
ADMINER_PORT=8080
DB_HOST=mars-probe-simulator-db
DB_PORT=5432
DB_USER=myappuser
DB_PASSWORD=password
DB_NAME=mydb
ENV=dev # dev, test, prod
GRAFANA_ADMIN_USER=admin
GRAFANA_ADMIN_USER_PASSWORD=admin

[!WARNING]

Each .env file is used for a specific purpose (development, testing, or production). For a complete experience, you should create .env, .env.test, and .env.prod. All must contain the same variables. You should change the values for each environment, avoiding conflicts.

🚀 Getting Started

Run both commands in sequence to prepare and launch the application:

make setup
make dev

Run make setup to install dependencies, enable Git hooks, and migrate the database.
Run make dev to start the app and its local Docker stack.

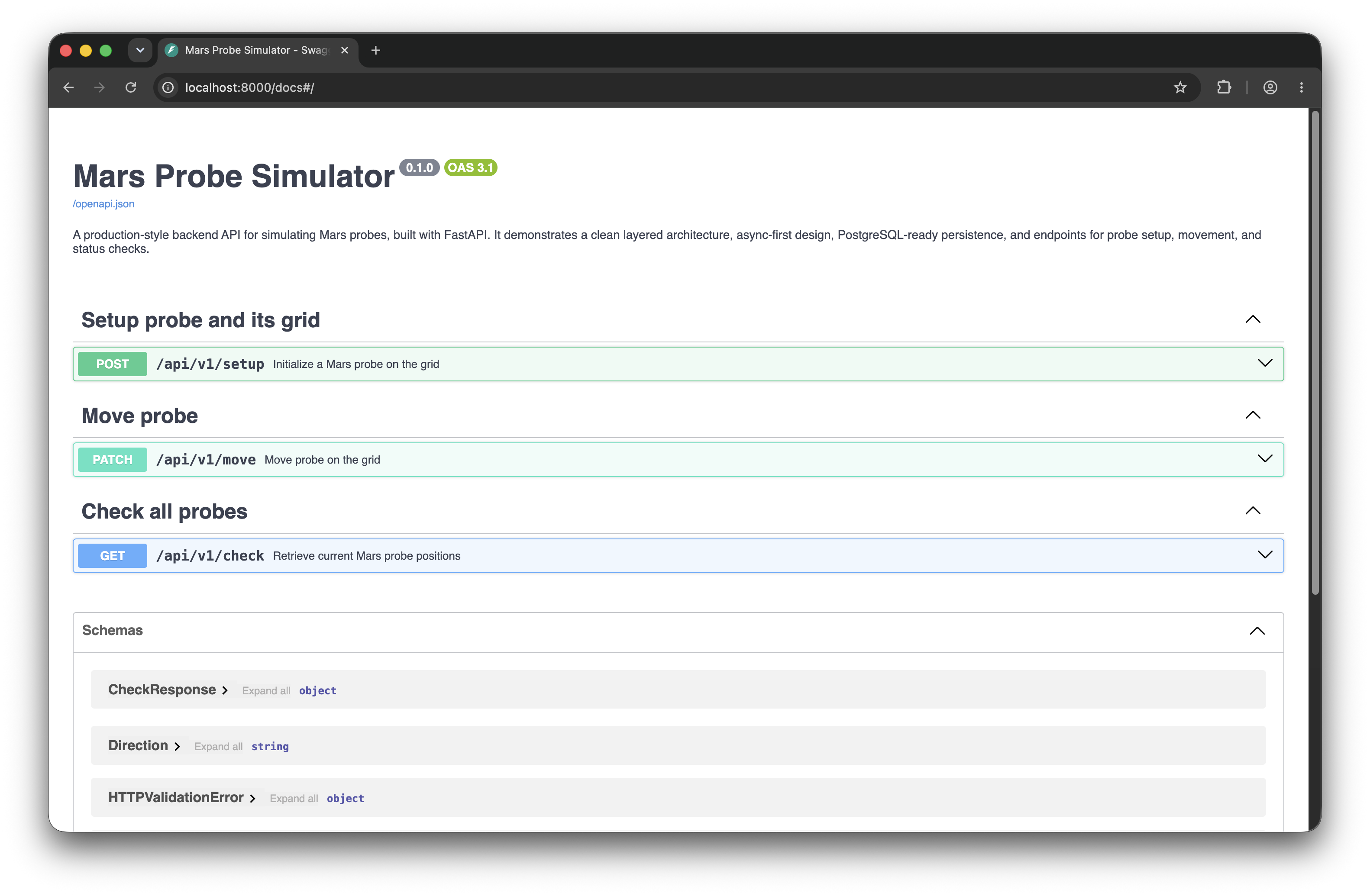

Open http://localhost:8000/docs to explore the automatically generated OpenAPI UI.

🚧 API Endpoints

All endpoints are exposed under /api/v1.

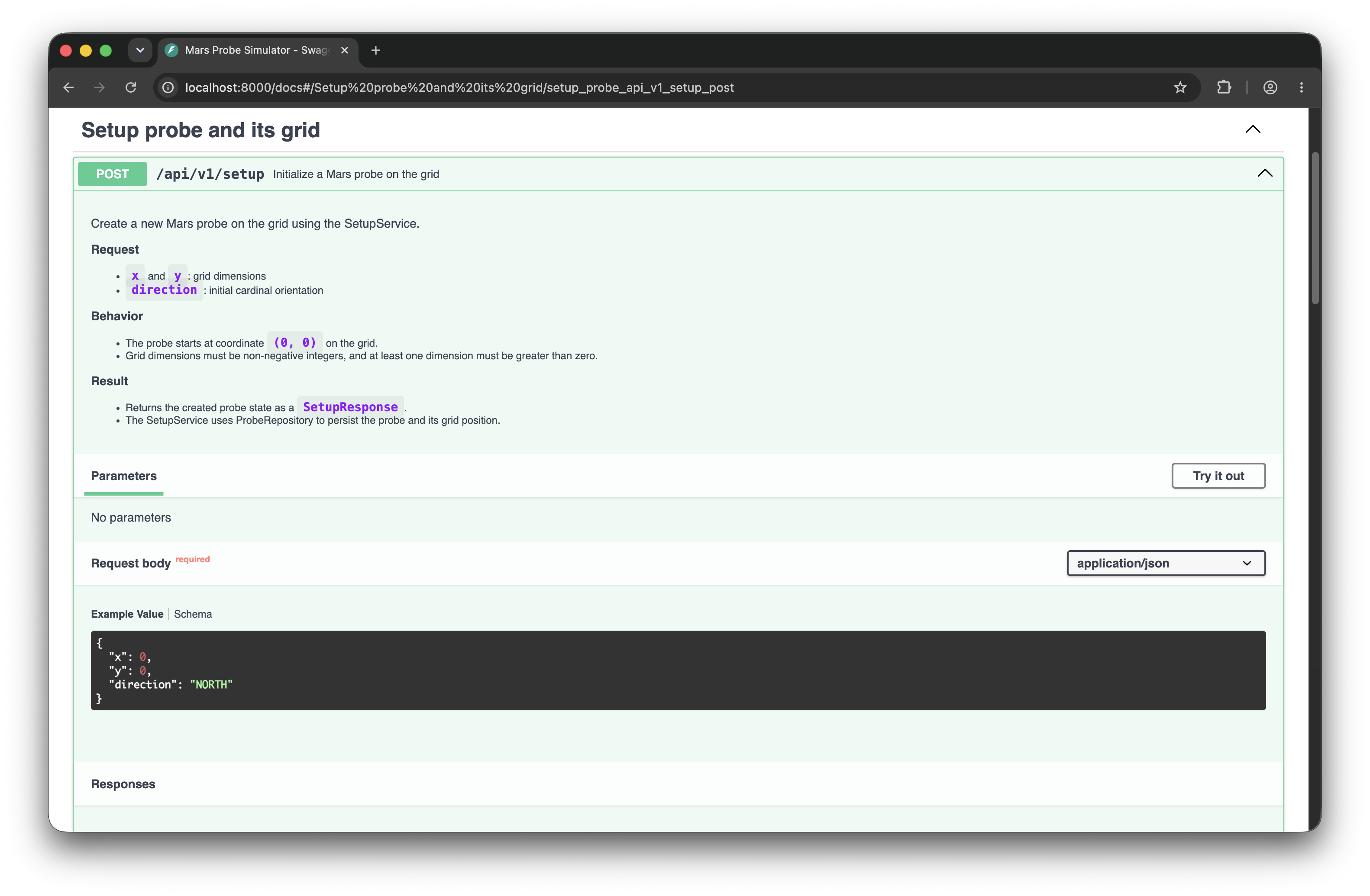

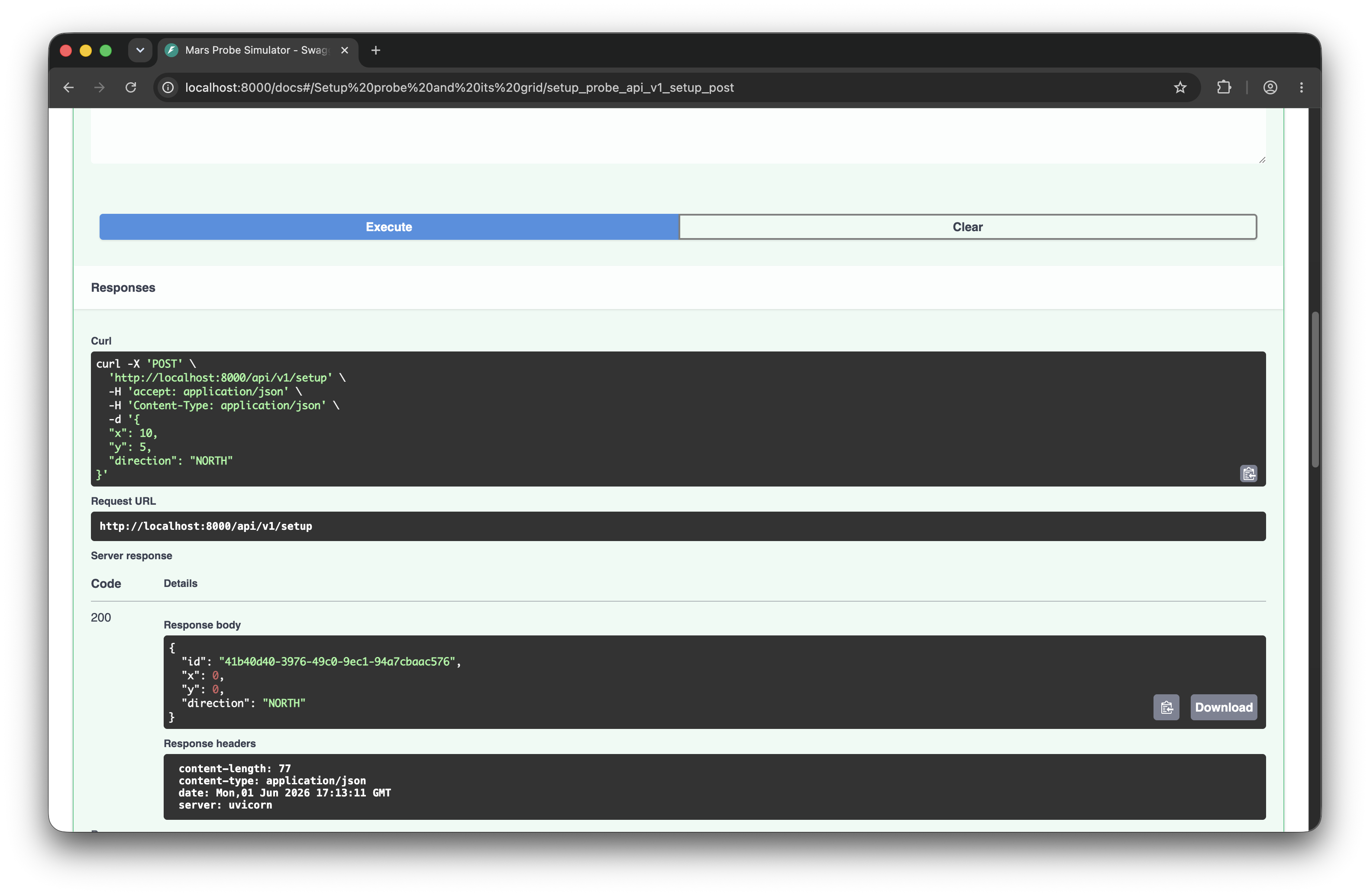

POST /api/v1/setup
- initialize a Mars probe on a grid
- accepts x, y, and direction
- returns the created probe state

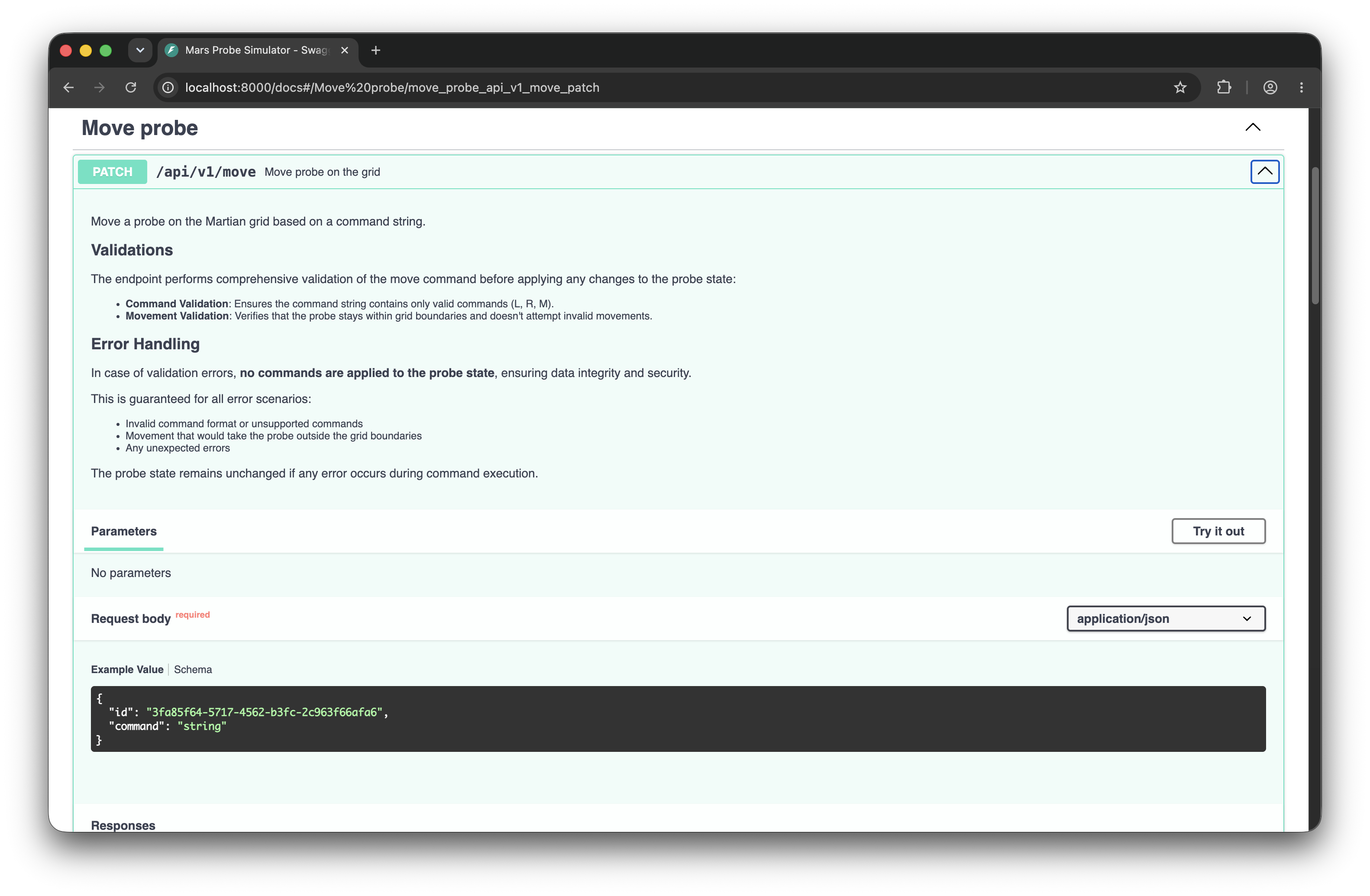

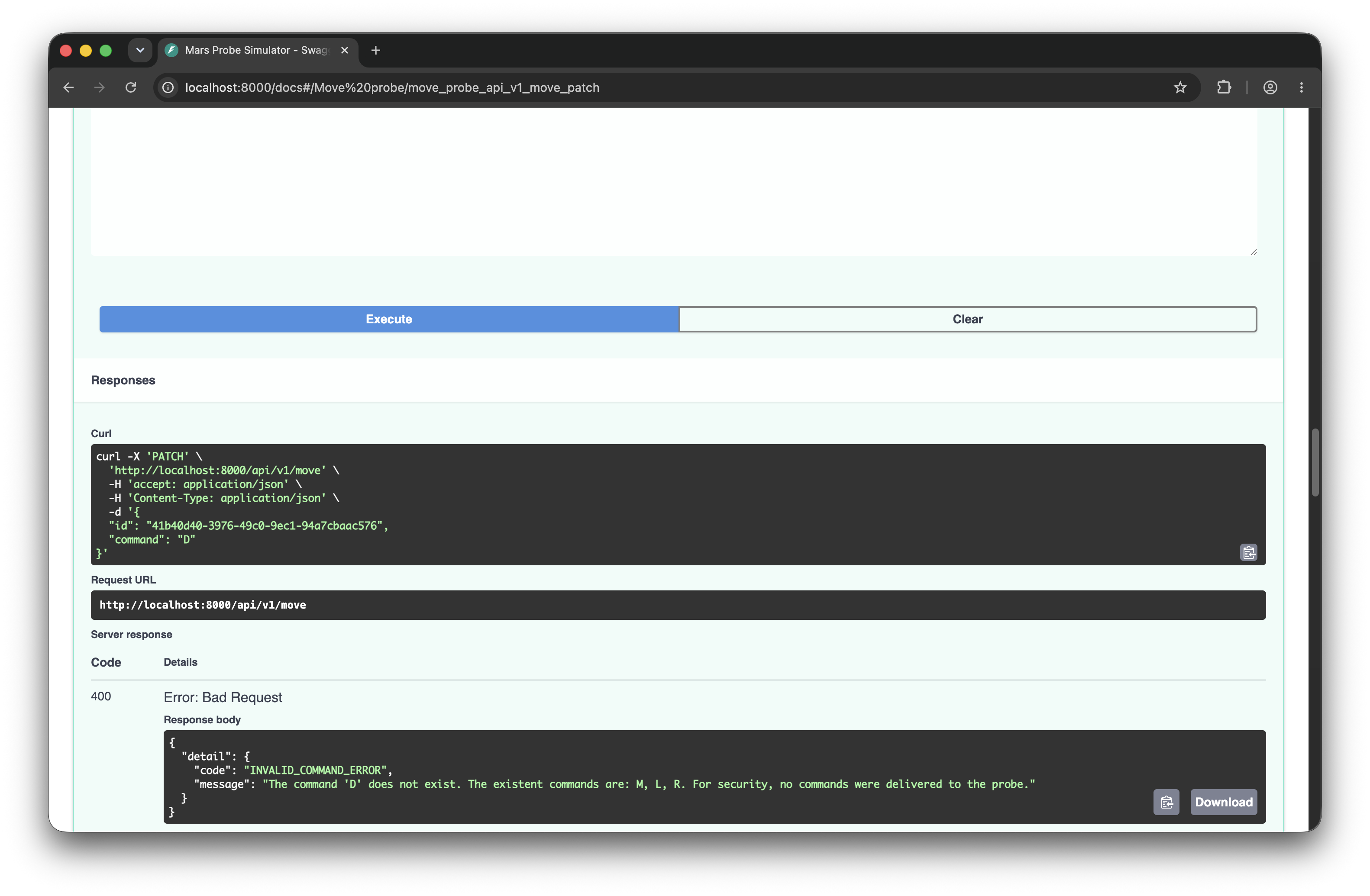

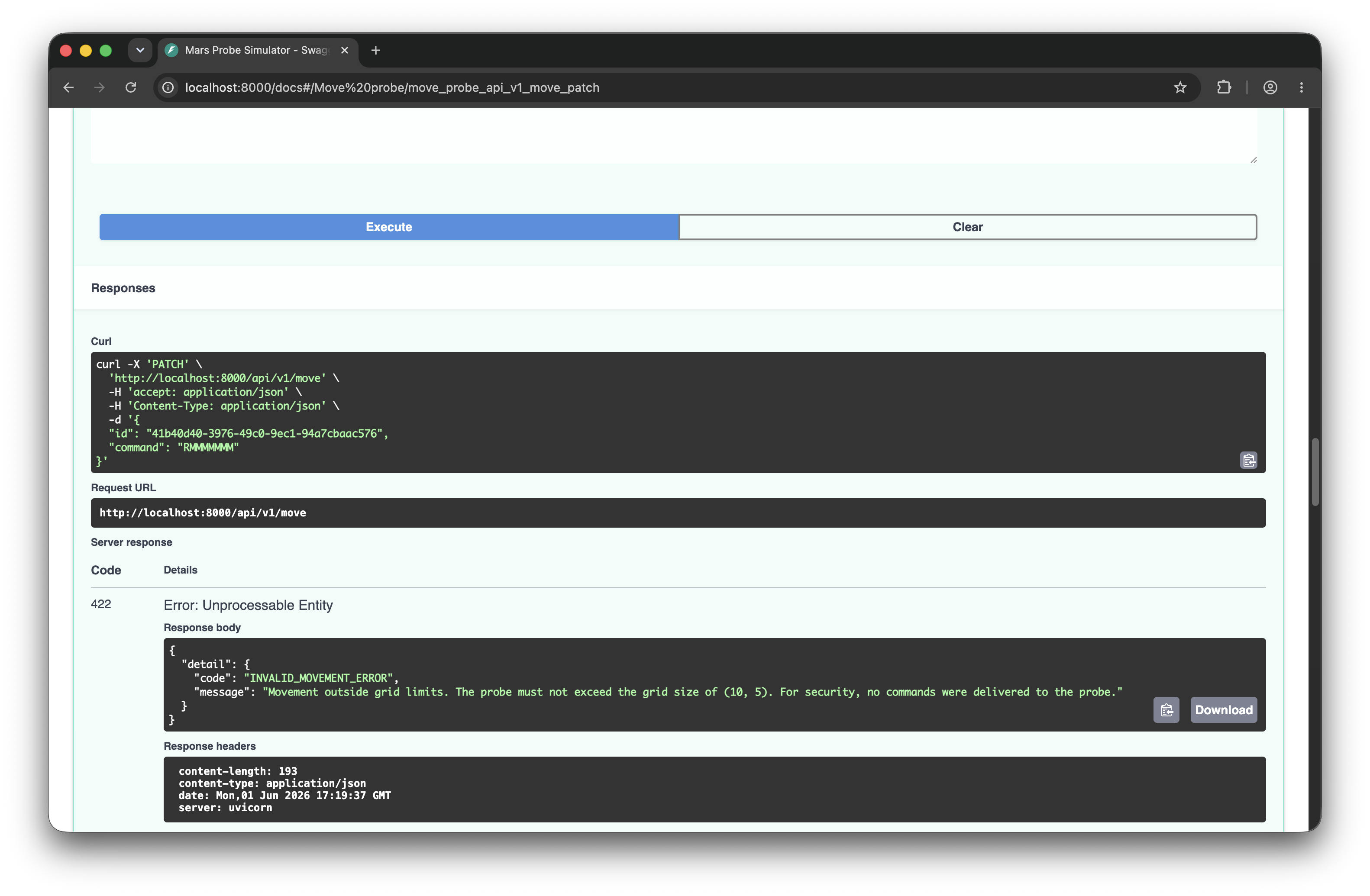

PATCH /api/v1/move
- execute movement commands against an existing probe
- valid commands: L, R, M
- prevents invalid grid moves and invalid commands

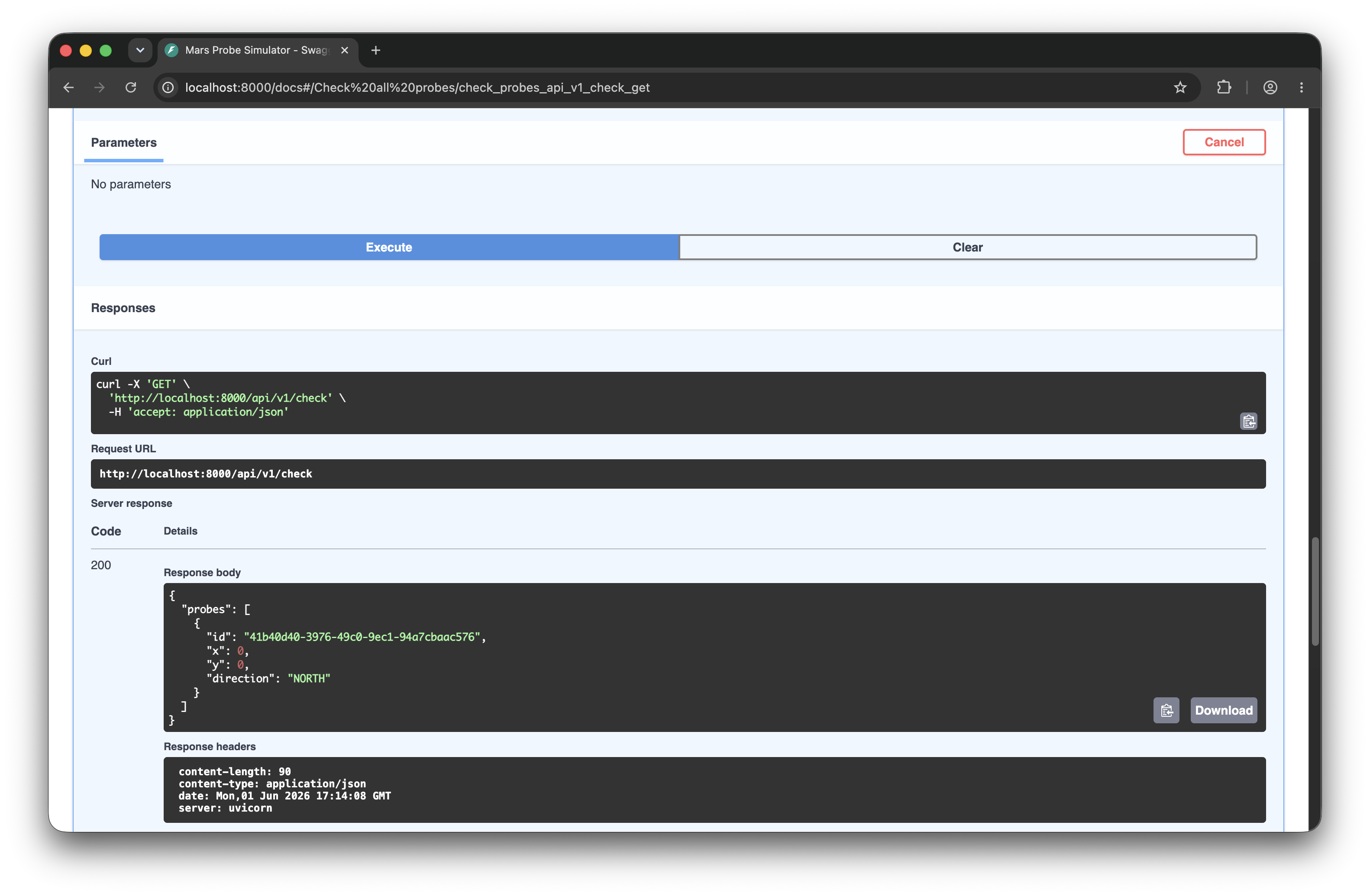

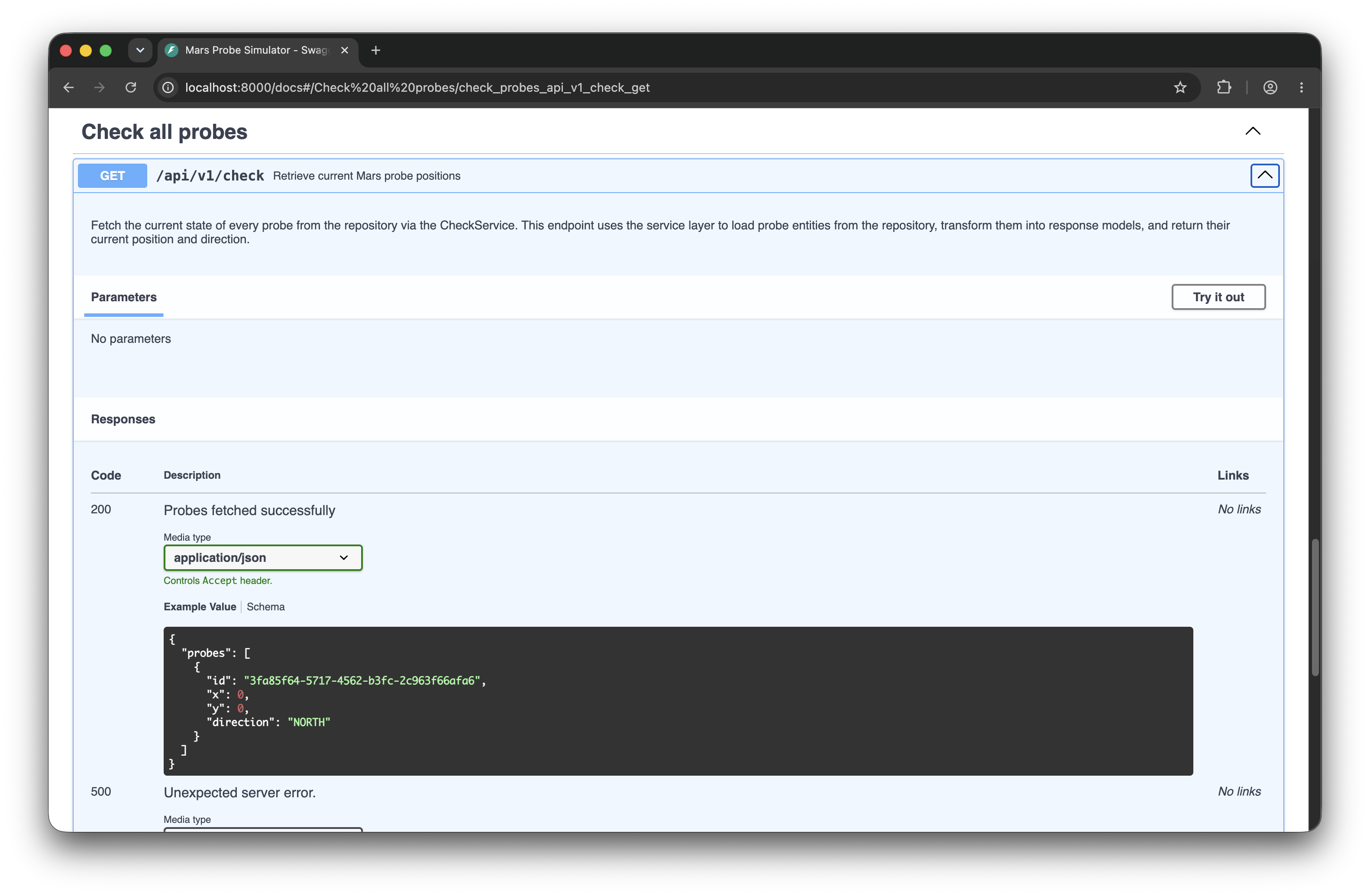

GET /api/v1/check
- returns current probe coordinates and orientation

OpenAPI docs are available at /docs when the app is running.

📌 What this project demonstrates

This repository demonstrates how I approach backend engineering with senior-level discipline:

scalable backend architecture with clear service and domain boundaries
async-first implementation aligned with modern Python best practices
practical testing discipline across unit, integration, and E2E levels
clean, modular code organization built for team collaboration
production-minded infrastructure and deployment readiness
strong focus on maintainability, validation, and long-term operability

🧱 Why this repository stands out

This project was structured to demonstrate backend engineering maturity:

predictable service boundaries
clear domain ownership
robust validation and error handling
environment-specific configuration
containerized local development
repeatable migration workflows
quality gates through automated tooling

🧠 Closing Note

This project was intentionally structured beyond the minimum requirements to reflect real-world backend engineering practices, including maintainability, scalability, and test strategy design.

Name		Name	Last commit message	Last commit date
Latest commit History 88 Commits
.github/workflows		.github/workflows
.husky		.husky
app		app
docker		docker
files		files
migrations		migrations
tests		tests
.dockerignore		.dockerignore
.gitignore		.gitignore
.python-version		.python-version
Makefile		Makefile
README.md		README.md
alembic.ini		alembic.ini
commitlint.config.cjs		commitlint.config.cjs
package-lock.json		package-lock.json
package.json		package.json
pyproject.toml		pyproject.toml
uv.lock		uv.lock

Folders and files

Latest commit

History

Repository files navigation

🚀 mars-probe-simulator

🌟 Engineering Highlights

⚙️ Tech Stack

🐳 Docker & Environment Strategy

📊 Observability

Signals

Structured Logging

Health Endpoints

Metrics

Distributed Tracing

Local Observability Stack

Tooling

🧰 Code Quality and Developer Experience

📦 Database Access (Adminer)

⛳ Local commands

🏗 Architecture Overview

📁 Project Structure

🧪 Test Strategy

✔ Unit tests

✔ Integration tests

✔ End-to-end tests

🔐 Design Principles

Service-oriented business logic

Repository abstraction

Dependency injection

Async-first implementation

Contract-first validation

✅ Prerequisites

🧾 Environment files

🚀 Getting Started

🚧 API Endpoints

📌 What this project demonstrates

🧱 Why this repository stands out

🧠 Closing Note

About

Topics

Resources

Uh oh!

Stars

Watchers

Forks

Releases

Packages 0

Uh oh!

Contributors

Uh oh!

Languages

Packages
