📘 JC3248W535 – ESPHome Energy Dashboard for Home Assistant

This repository contains a complete ESPHome configuration for the JC3248W535 320×480 display module, integrated with Home Assistant to visualize real-time energy data. It features a custom LVGL-based UI with animated arrows, dynamic color-coded indicators, and responsive widgets that reflect photovoltaic production, bidirectional power flow, and inverter metrics.

Key Features!

🖥️ Native LVGL dashboard rendered on JC3248W535 (ESP32-S3)

⚡ Real-time animation speed driven by sensor values (e.g. power flow)

🌞 Photovoltaic and inverter data visualization

🔄 Bidirectional energy flow indicators with directional arrows

🎨 Color-coded labels based on energy context (import/export, PV active)

📡 Seamless integration with Home Assistant via API

Hardware Requirements

• JC3248W535c
• Optional: BME280,
• inverter with Modbus/MQTT,
• power meter

Software Stack

• ESPHome (ESP-IDF framework)

• Home Assistant (with MQTT or native API)

• LVGL 8.4.0

• PlatformIO (for local builds)

• Sensor values from Home Assistant are fetched via ESPHome.

• Arrows animate vertically and horizontally to indicate energy direction.

• Animation speed is dynamically calculated as 6000 - sensor_value, clamped to ensure smooth transitions.

• Labels recolor based on energy context (e.g. red for import, green for PV export).

Getting Started

• Flash the ESP32-S3 with the provided .yaml using ESPHome CLI.
• Connect the device to Home Assistant via API or MQTT.
• Configure your sensors in HA (e.g. sensor.inverter_active_power, sensor.bidirectional_energy_meter_power_b).
• Watch the dashboard come alive with real-time data and animations.

🎬 Demo Videos

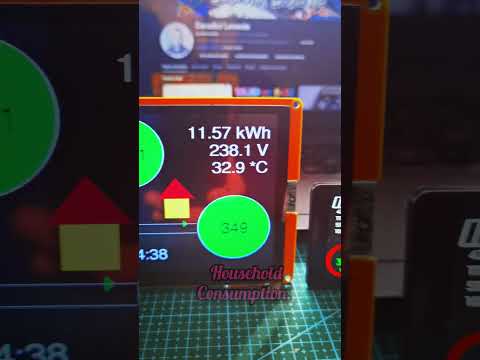

JC3248W535C · Real‑time Energy Monitoring (ESPHome + Home Assistant)

Old vs. New

HTTP Request vs. ESPHome ESP32-8048S070 vs. JC3248W535C Energy Dashboard Showdown
